Vonets VAP11G-500 is a professional 300Mbps Mini WiFi Bridge. Allows a WiFi connection in devices that only have RJ45 network port. Its simple setup, in 2 minutes. Need feeding between 5V and 15V obtainable USB port or external power supply.
VAP11G-500 is a safe environmental WiFi signal Repeater. In WiFi bridge and repeater mode, VAP11G-500 can double extend the existing WiFi signal range, also can make sure the safey of WiFi signal. The work theory is: on the edge of the original WiFi hotspot signal coverage, put a VAP11G-500 under "WiFi Repeater mode", VAP11G-500 will extend the weak WiFi signal receive to normal and safe strength and after optimization and error correction processing to reach the double extension of WiFi signal range under the premise security. It is different from traditional WiFi Signal amplifer—it just amplifies the signal and ignore the WiFi security.
VAP11G-500 provides three kinds of power supply methods, omits the worries of carrying a lot of power adapters, usage is more flexible; Plug and play, meet the flexible network solutions. VAP11G-500 has practical function, superior performance, is easy for management and provides multiple safe protective measure, can protect the security of user’s WiFi network.
There are 2 ways to feed the VAP11G-500 directly connecting it to a USB port or using a DC ADAPTER should not exceed 15V. In this way we can power the device itself, Ip camera, receiver, etc ...
We only have to install the software on a PC or Laptop to connect the set and finally VAP11G RJ45 cable to the device.
|IEEE 802.11 version||B / G / N|
|Signal range||500 meters without obstacles|
|Connection||1x direct current

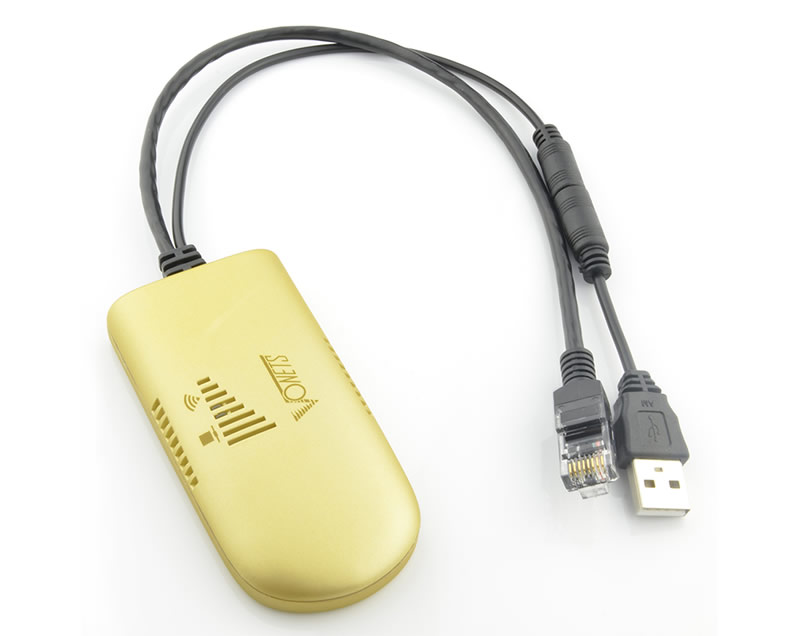

2 in 1 cable for power and Ethernet 10/100
|Buttons||Restart (Press 5 seconds)|
|Status LED||Ethernet status
|Antenna||2x omnidirectional internal 2 dbm|
|Input Voltage||DC 5V;|
|Consumption||Less than 2W|
|Size||90mm x 45mm x 15mm|
|Basic Functions||WiFi Hotspot
|Operating Modes||Intelligent bridge mode.
WiFi signal repeater mode.
|Security||WEP(64,128), WPA, WPA-PSK, WPA2, WPA2-PSK.|
|System functions||Reset Device|
Managing account and password
