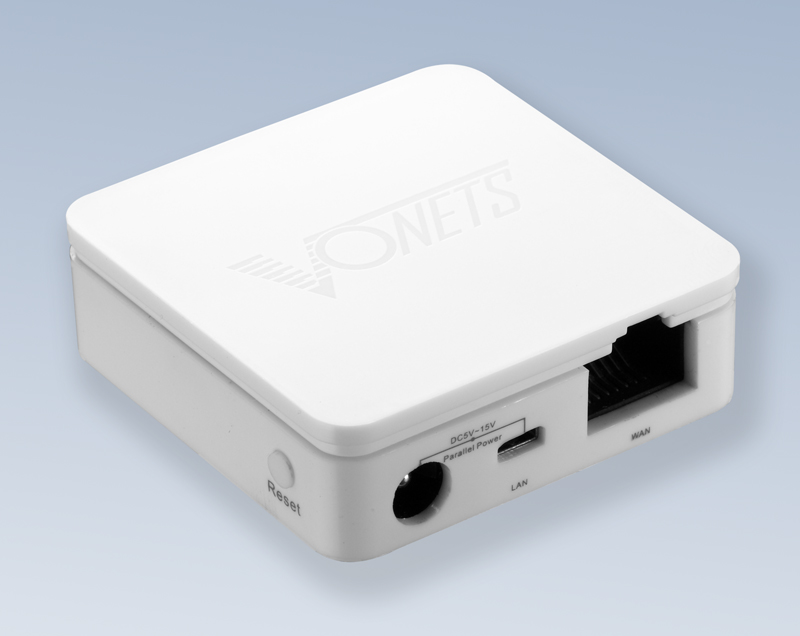

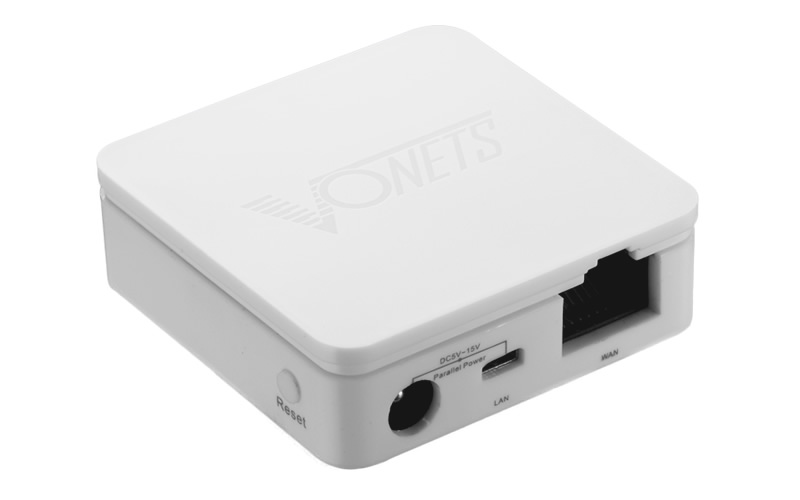

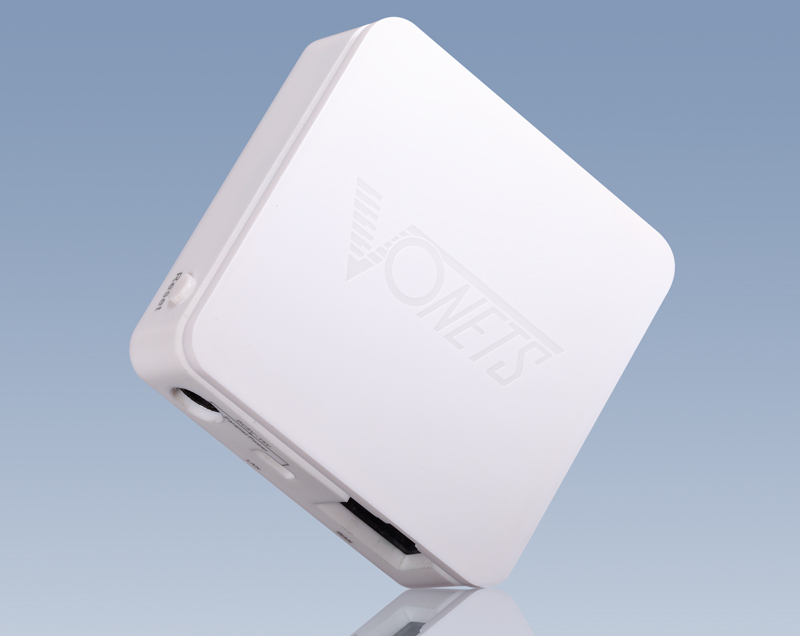

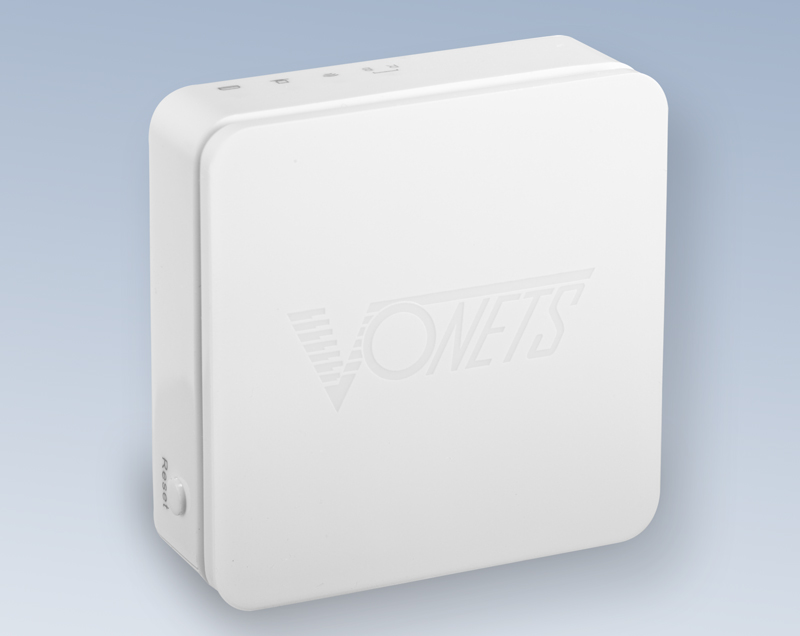

VAR11N is the professional mini WiFi repeater, and together with mini WiFi router and WiFi intelligent bridge that is elaborately developed by HouTian Network, the original creation D/A temperature compensated auto frequency control technology (TAFC), it solved the common failing of the traditional wifi router or wifi products that easily drop the network, make sure the lasting stability to ensure that the WiFi signal is not dropped. It is as an ecology and safe WiFi repeater. It is different from the traditional method that use increased the wireless transmitter power (it will generate a strong harmful radiation) to expand the distance of wireless transmission, but in WiFi signal coverage of failure point, place thise device as a WiFi signal repeater to re-enlarge the weak WiFi signal, and during not increasing the wireless transmitter power, expand WiFi signal coverage, safe and ecology, it is very useful for home or office safe WiFi signal coverage
VAR11N is a plug and play Mini WiFi router and WiFi bridge. On business trip and traveling stay at hotel, you just connect the Ethernet cable in the hotel room to Ethernet port of VAR11N, then connect power supply, the whole room is Wi-Fi wireless coverage. Now, you can take out your mobile phone, PAD and other devices that support Wi-Fi, then get Wireless internet at anywhere of the room, no need any settings.
Supports two configure mode, web browser configuration and PC dedicated software configuration (no need IP connection), the procedure is so clear and concise, without redundancy, greatly facilitates the use of different levels of users.
|Protocol Standard||IEEE 802.11g, IEEE 802.11b, IEEE 802.11n|
|Interface||10/100M adaptive Ethernet female port

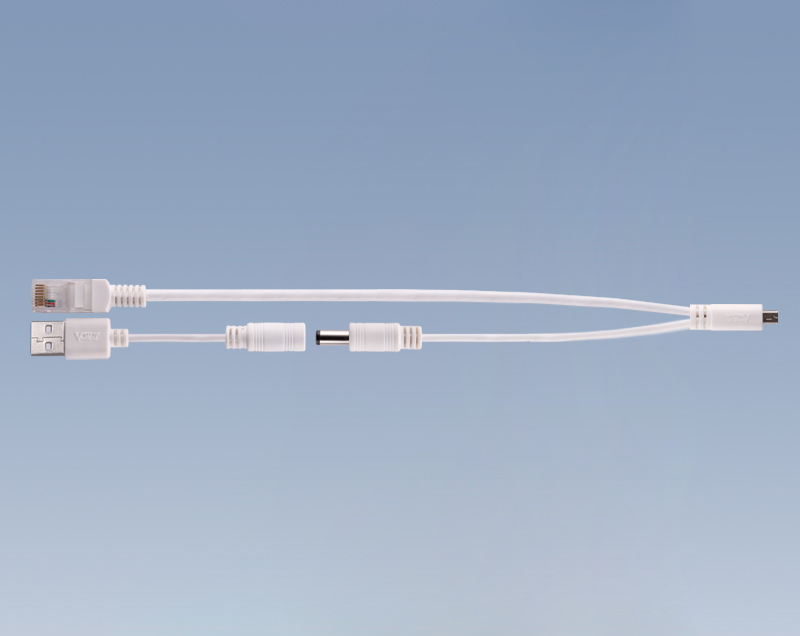

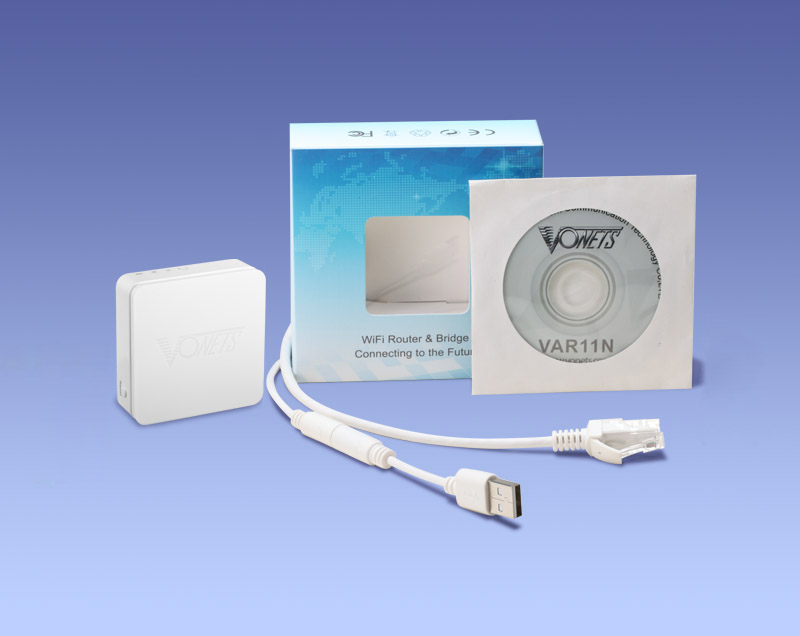

Dedicated power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable.
Ethernet cable and Ethernet LAN/WAN interchangeable.
|Button||Reset button (press 5 Seconds)|
|LED||Ethernet port status Lights (cable status & work mode)
WiFi connection statem (green for success)
|Antenna||Built-in Intelligent Omnidirectional antenna|
|Size||43mm x 43mm x 14mm (L x W x H)|
|Basic functions||Wireless Switch
SSID Broadcast switch.
Channel option: 1-14.
WiFi mode option: 802. 11n only, 802.11 B/G/n mixed, 802.11 B/G mixed, 802.11G only, 802.11B only.
WiFi Hotspot scan automatically.
WiFi Hotspot memory.
|Working Mode||WiFi Intelligent bridge:
- AP Station mode (WiFi hotspot), suitable for hotel room usage
- AP Client mode (WiFi client), suitable for IP TV, STBs.
- Repeater mode (WiFi signal repeat), it can extand the distance of WiFi transfer.
|WiFi router mode|
|Wireless security||WiFi MAC address filter
WiFi Security function switch.
64/128/WEP encryption & WPA-PSK/WPA2-PSK、WPA/WPA2 security mechanism
|WAN port Setting||WiFi router mode: WAN port connection type (PPPoE, Dynamatic IP, Static IP, L2TP, PPTP).
|Firewall||IP and MAC address binding against ARP attacks (WiFi router mode support).
IP address filter (WiFi router mode support).
Domain filter (WiFi router mode support).
Mac address filter.
|Forward rules||Port forwarding (WiFi router mode support)
Virtual Service (WiFi router mode support)
|System function||Time service
Configure file import and export
Administrate account and password revise
