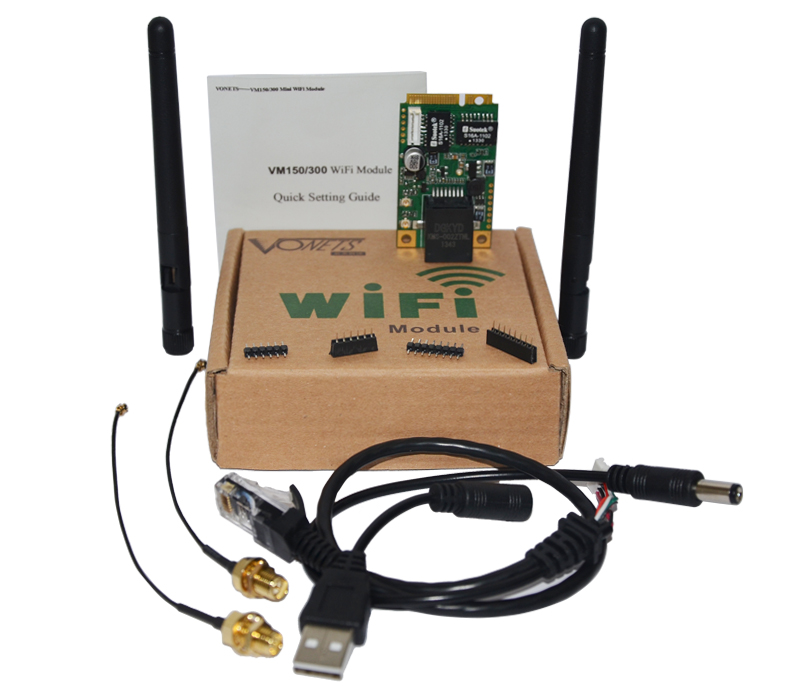

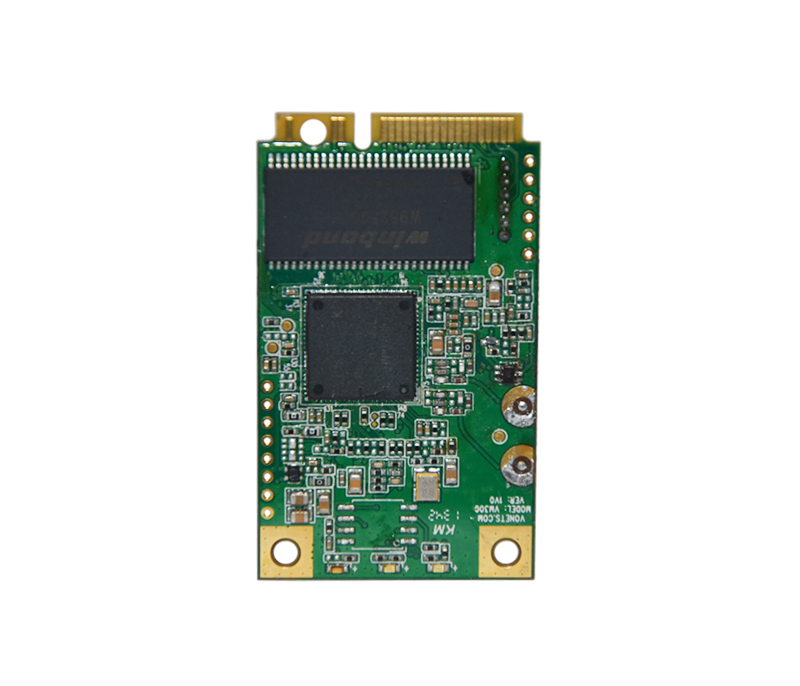

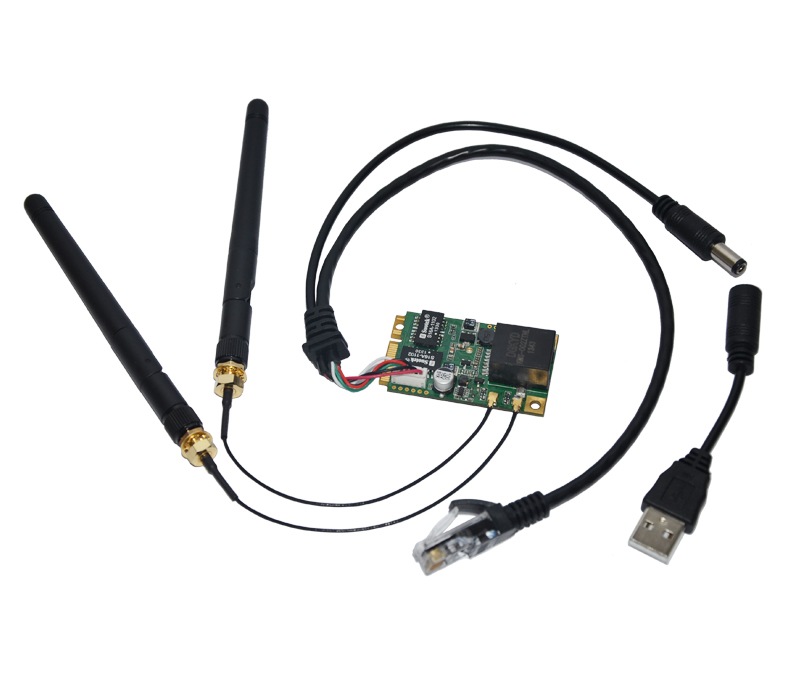

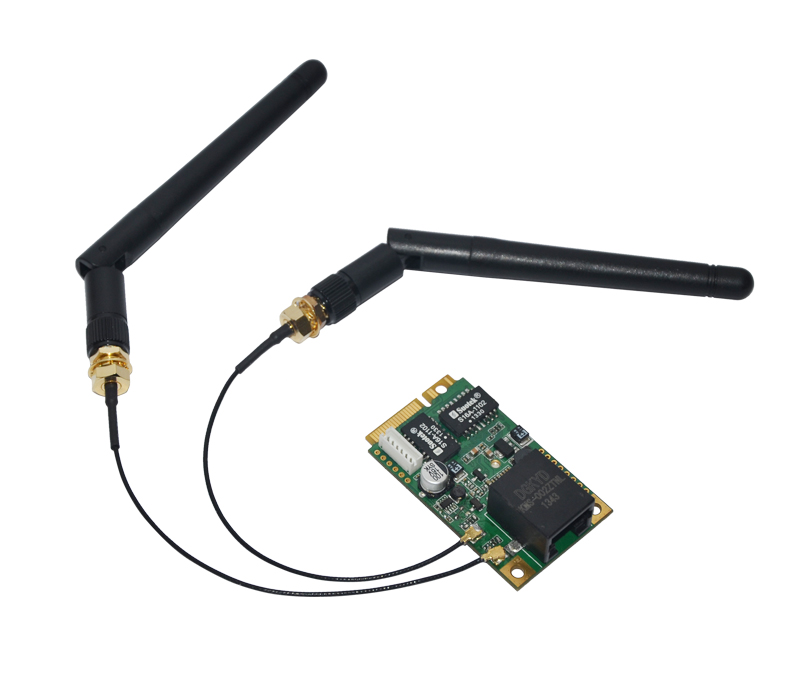

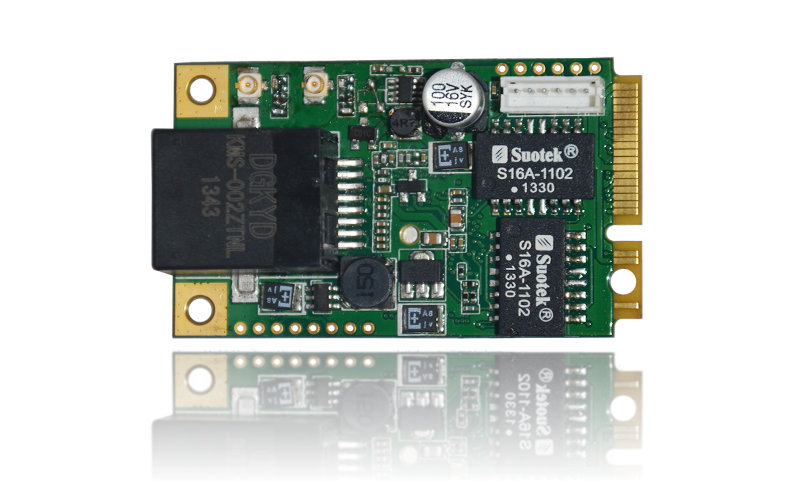

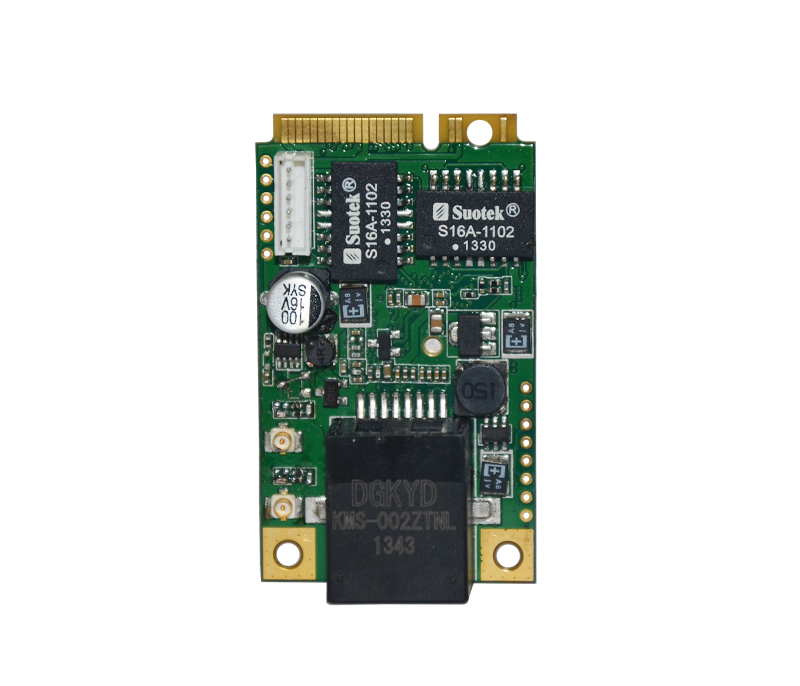

Vonets VM300 is a professional wifi module with multiple functions and up to 5 control ports. Supports 3G/4G using USB Dongle, router mode, repeater mode to extend the WiFi signals, intelligent bridge as a receiver or as an access point, and so has two GPIO ports that can be controlled through a Socket.
The WiFi module supports a maximum speed of 300 Mbps and distances of about 100 meters without obstacles with a standard antenna. Adopt the original creation D/A temperature compensated auto frequency control technology(TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped.
We recommend you download the Datasheet for detailed information about the product, also the quick start guide, both in download section.
|Clocked of main chip||580MHz|
|Memory||32Mb SDRAM, can be extended 64 Mbytes.|
|4Mb SPI Flash, can be extended 8 Mbytes.|
|Interfaces||MINI PCIE, 6PIN Female, 6PIN Pin, 8PIN Pin, RJ45 Female|
|WiFi working frequency||2.4GHz|
|Antenna||2T2R dual antenna|
|RF Module Output power||15dbm - 16.5dbm|
|Support 3G/4G||Yes (USB dongle)|
|Functions||Firewall, QoS, VPN|
|Standards and Protocols||Wi-Fi 802.11 B/G/N|
|Max. transmission rate||300Mbps|
|Working modes||Routing, Bridge (also support AP Client and AP Station), Repeater|
|Operating voltage||3.3V - 3.4V DC, 4.5V - 15V DC|
|Size||51 × 30 mm|
|Operating ambient temperature||-25°C - 55°C|
